Bodycraft LX4 Commercial Multi Station Home Gym

Sale price $12,499.00 Regular price $12,999.00
or 4 payments of $3,124.75 with   or

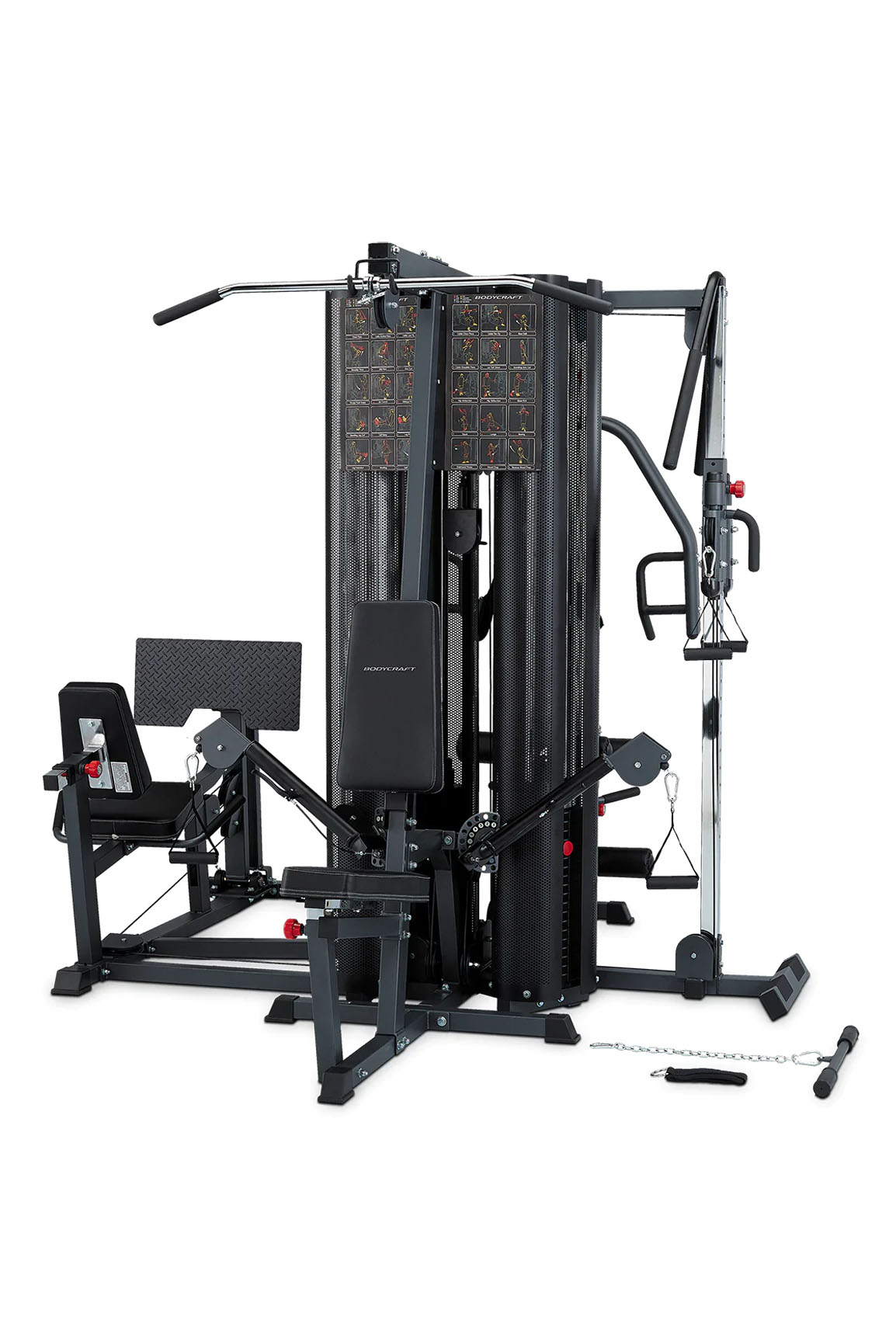

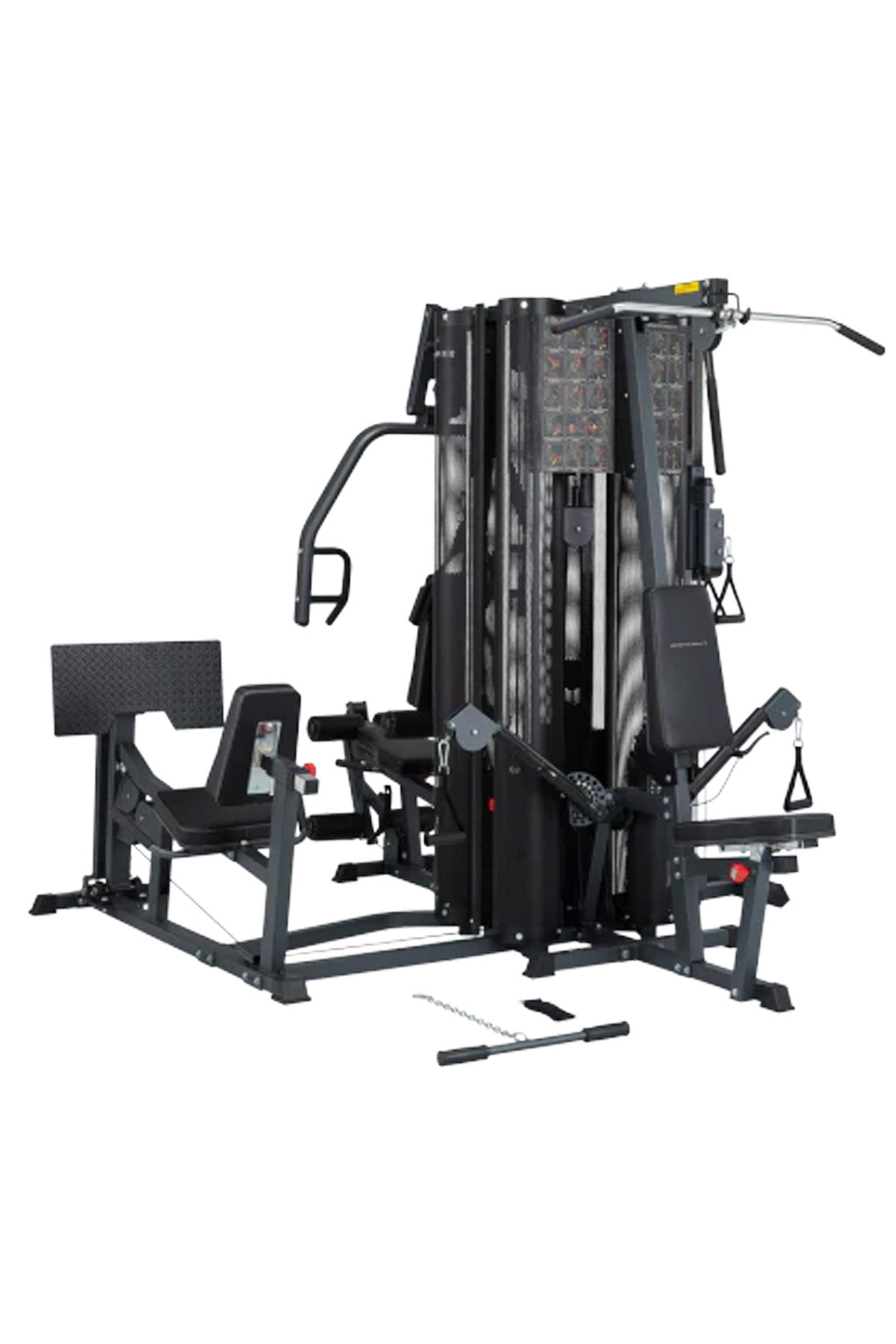

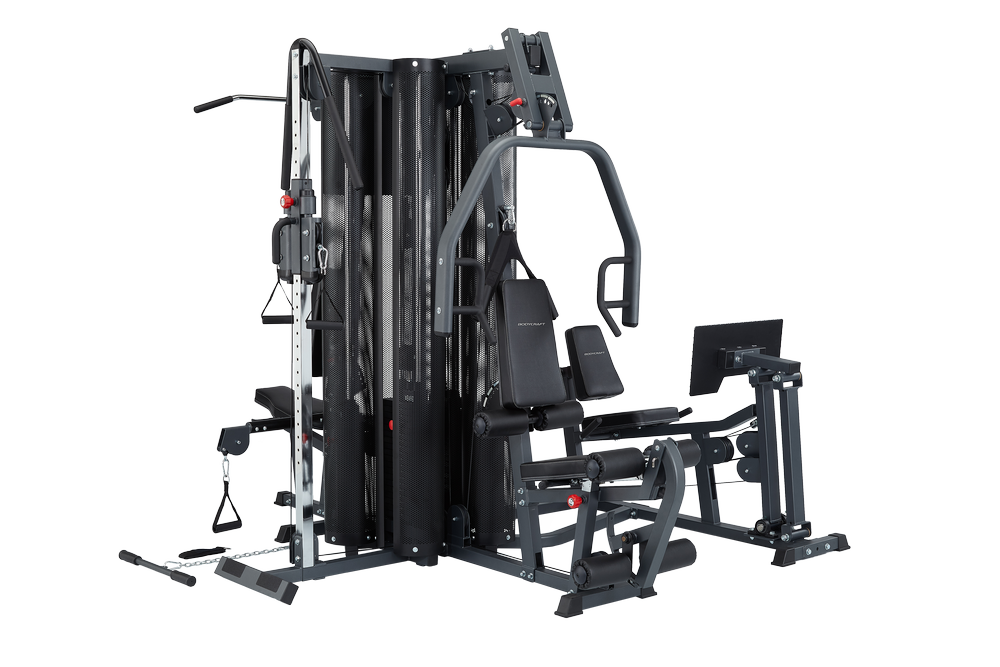

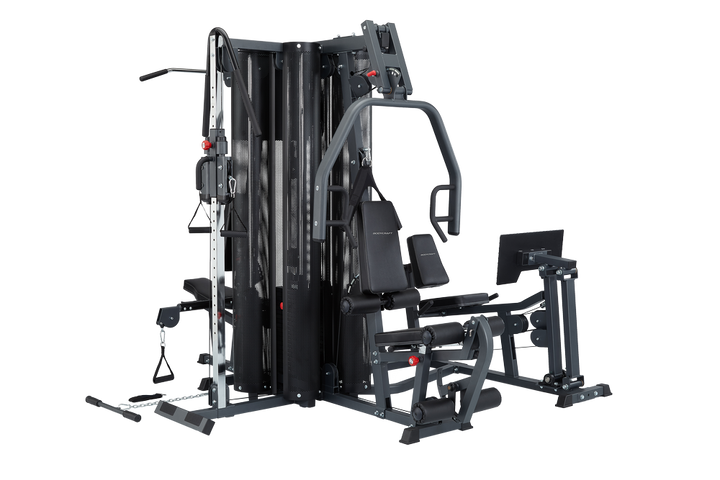

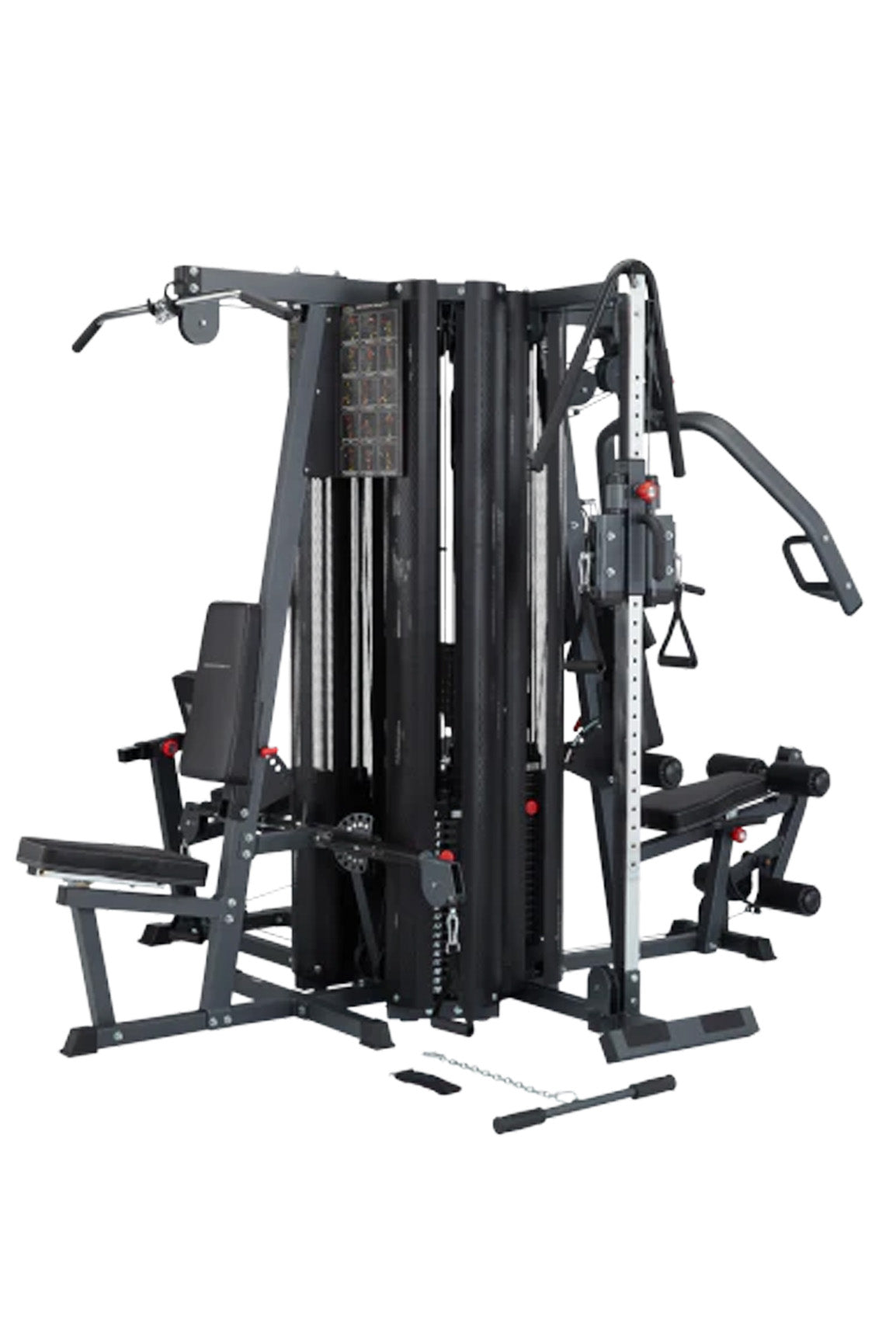

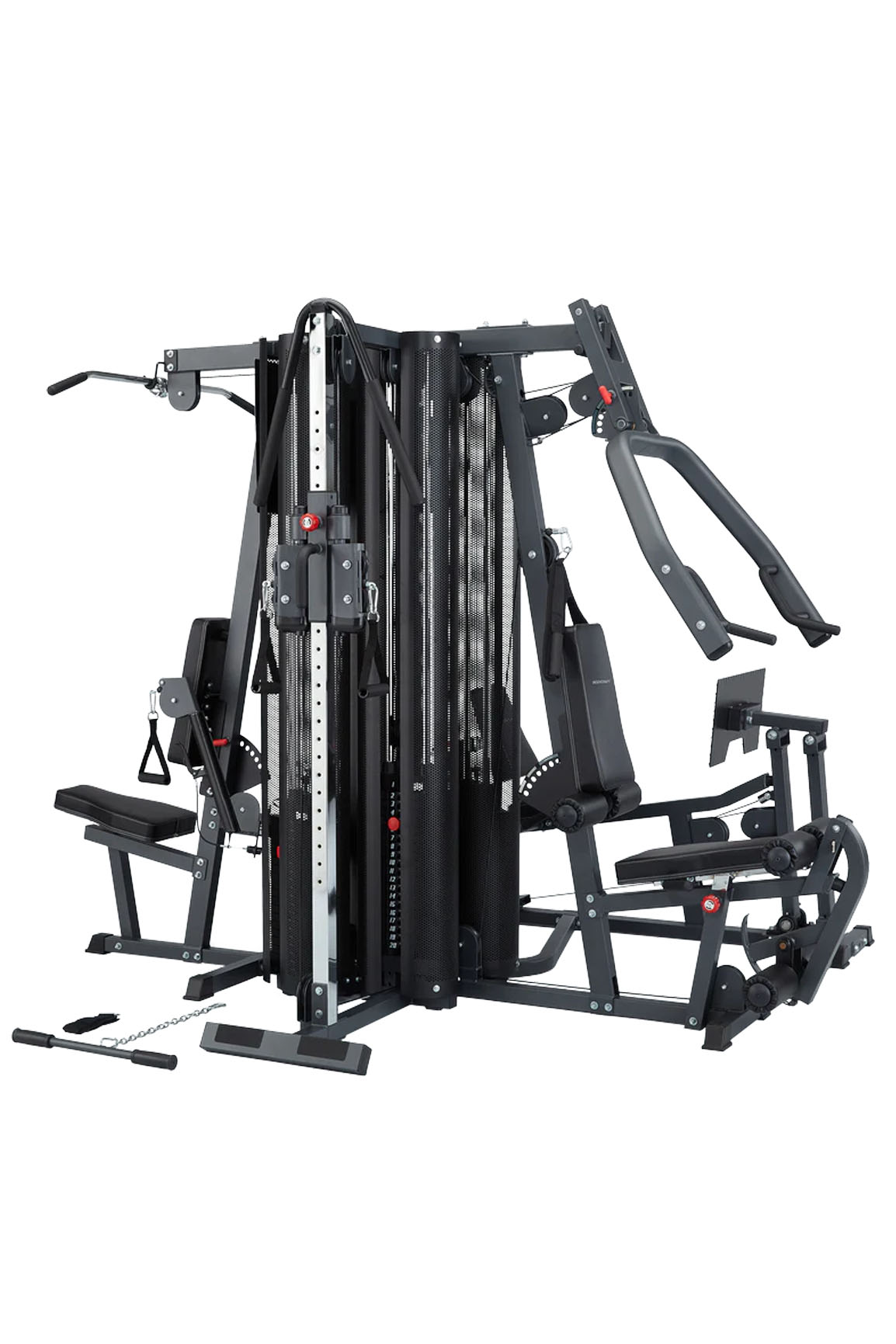

The Bodycraft X4 4 Stack Gym is a robust piece of equipment, ideal for Commercial or Home use. The X4 uses an ingenious quadruple weight stack design, which lets four different people work out simultaneously. This versatility puts the X4 in a class of its own.

The X4 4 Stack Gym allows the user to perform over 90 different exercises, on four different stations. Each Station Has a 200lb /91kg Weight Stack Independent of the other station These stacks feature precision milled cast iron plates with nylon bushings for smooth action.

  • All Stations Have a 200lb (91KG) Weight Stack independent of the other Stations.
  • Bench Press Station with adjustable starting point.
  • Seat and seat back are adjustable.
  • Back pad tilts to ensure full support when performing incline and shoulder presses.
  • Cable Station with adjustable arms allows for a very wide array of exercises including Sports Specific, Core Training, and exercises that mimic Dumbbell Training.
  • Ab Crunch Station for abdominal training.
  • Low Pulley Station with folding foot plate.
  • High Pulley Station for Lat Pull Downs, and Triceps Push Downs.
  • Leg Extension and Curl Station provides Seated Leg Extension and Standing Leg Curl.
  • Leg Press Station for full leg development. 2:1 weight ratio provides up to 400 pounds of resistance.
  • Weight Stack Enclosures for safety and beauty.

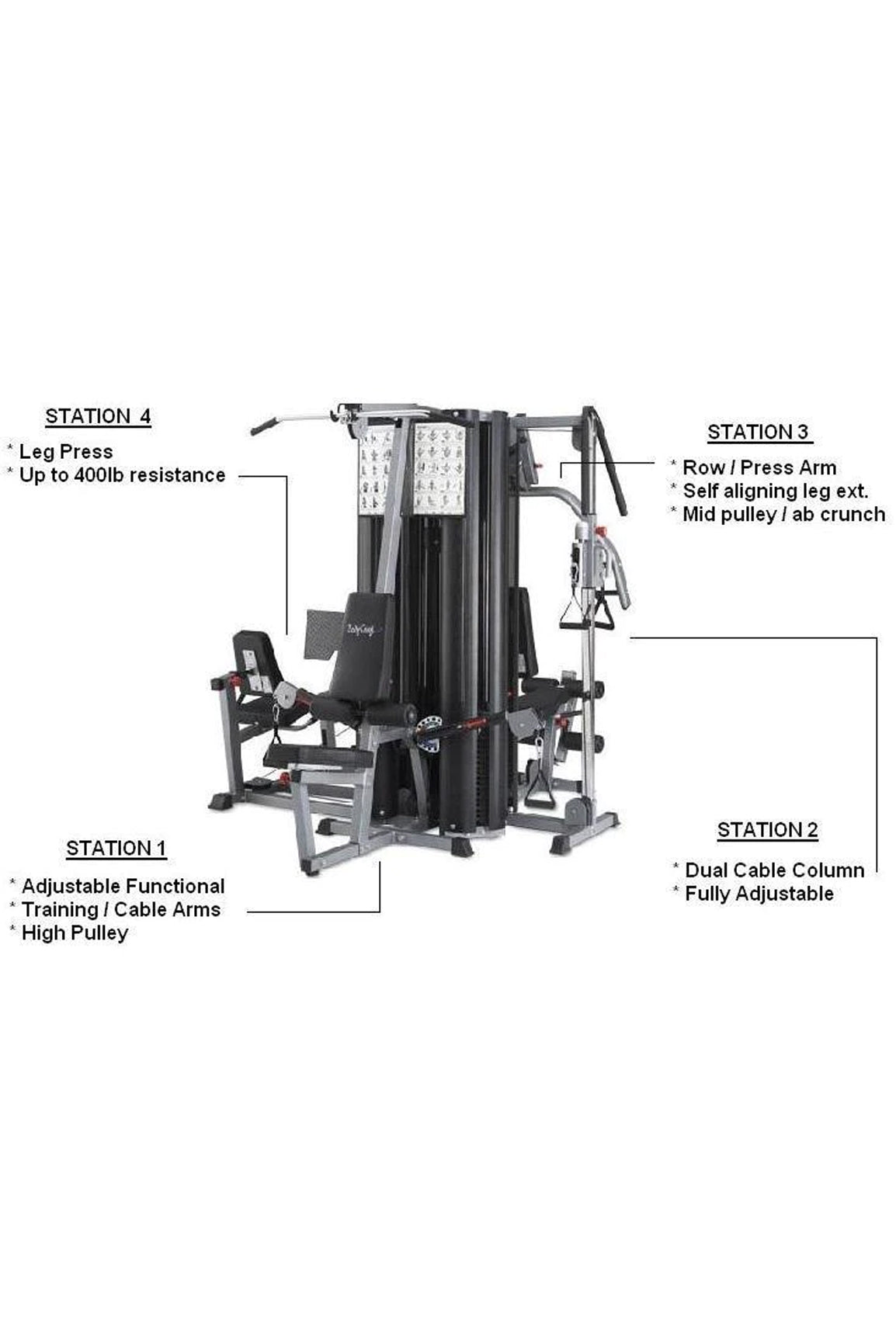

• Station 1 Functional Training /Cable Arm High Pulley
• Station 2 Cable Column or Inner/Outer Thigh
• Station 3 Row / Press Arm Leg extension Mid pulley
• Station 4 Leg Press

Station One- the fully adjustable training/cable arms, can duplicate every exercise you've ever performed with dumbbells (more than 100 in all). The station also includes a high pulley for lat pull downs, tricep pushdowns, and more.

Station Two- the adjustable dual cable column , provides resistance at any angle and at any desired height, with static handles mounted to the frame to help keep your balance when performing leg exercises.

Station Three- designed for machine-style bench presses, incline presses, shoulder presses, and seated rows. This includes a self-aligning leg extension/leg curl option and a mid pulley for ab crunches and triceps extensions.

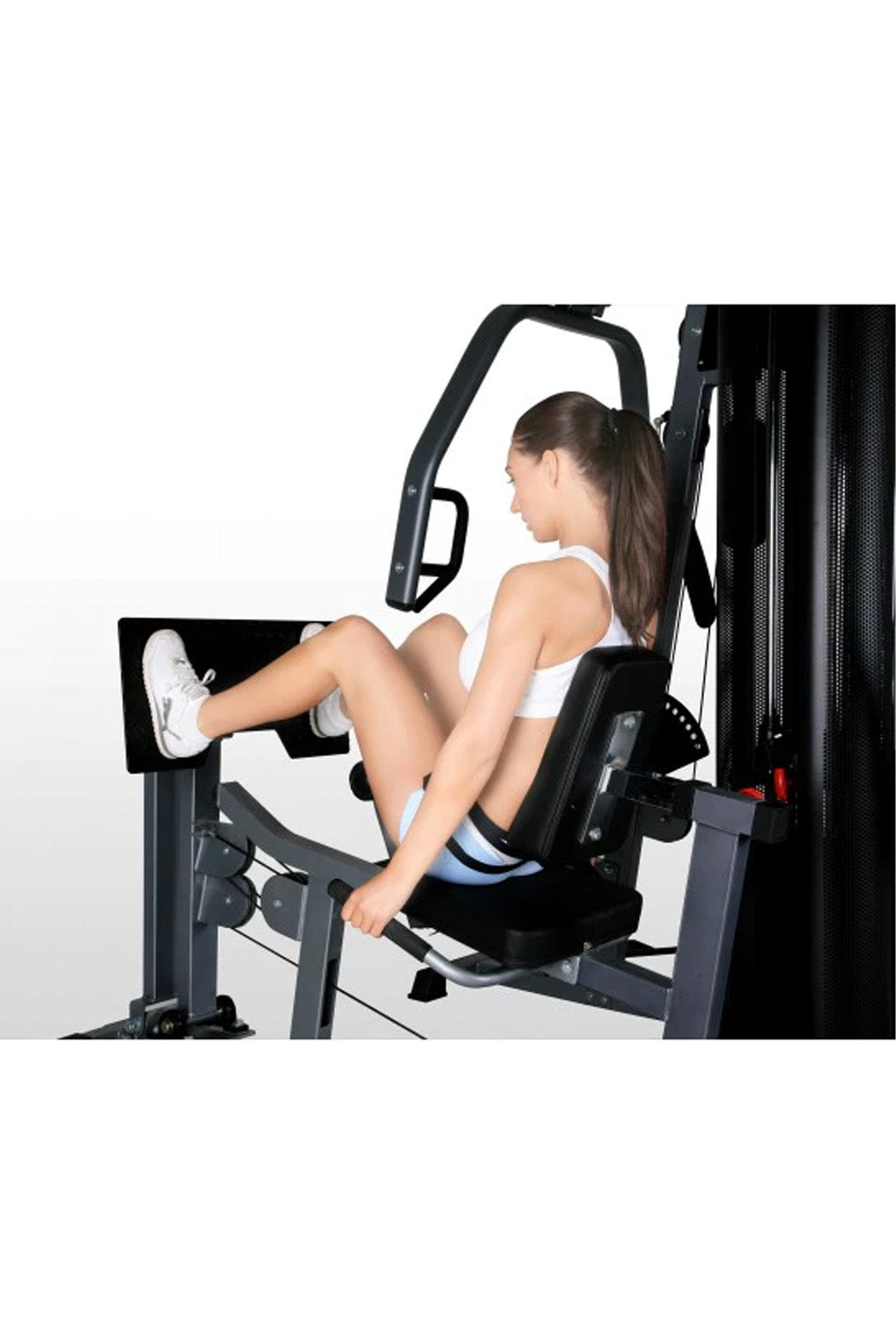

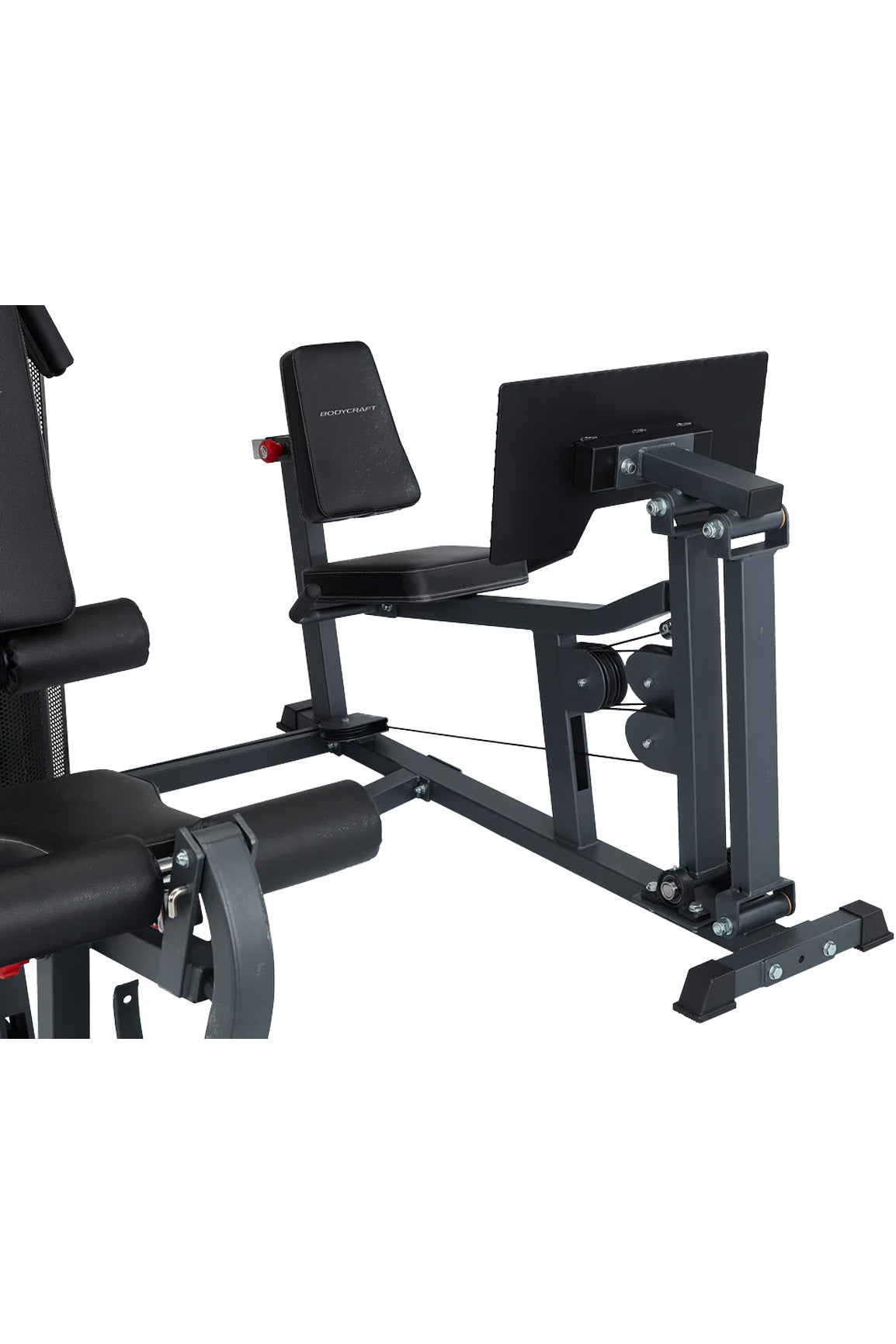

Station Four -supports leg presses and calf raises for full leg development, with creative cabling that doubles the resistance ratio to create up to 400lbs of resistance.

The Bodycraft X4 is constructed to the highest caliber. It benefits from heavy-gauge steel tubing, 4.5” diameter fiberglass-reinforced nylon pulleys with sealed ball bearing hubs, internally lubricated cables rated at more than 2,000lbs of tensile strength; extremely dense foam upholstery with double-stitched heavy-gauge vinyl covers 1.25” thick, precision-milled weight plates with EZ Glide nylon bushings and a platinum gray powder-coated finish.

The finish of the Bodycraft Fitness X4 is electro-magnetically applied in powder form to evenly coat all surfaces, then baked on at high temperatures for a tough, long lasting finish. The Bodycraft Fitness X4 Home Gym Exercise Machine’s guide rods feature chrome plated 1 inch diameter tubular steel for rugged durability and smooth action.

One of the most innovative Commercial / Home Gyms on the market today. Four completely independent workout stations each with their own 200lb weight stack means uninterrupted use all day long, day in day out. The Body Craft X4 Gym is well suited to the commercial environment or the discerning home gym user who wants everything. Very popular for use in Hotels, Resorts, Corporate Gyms, Lifestyle Centres and Community Gyms.


  • Frame: 20”x 30”, and 20” x 20” made of heavy gauge steel tubing.
  • Finish: Platinum Gray multi-stage electrostatic powder coat paint.
  • Pulleys: 4-1/20 diameter, fibreglass reinforced nylon and rotate on sealed ball bearing hub.
  • Cables: Internally lubricated, 7 X 19 strand construction, rated at 2000lb tensile strength.
  • Upholstery: Double-stitched heavy gauge vinyl covering contoured, extremely-dense foam.

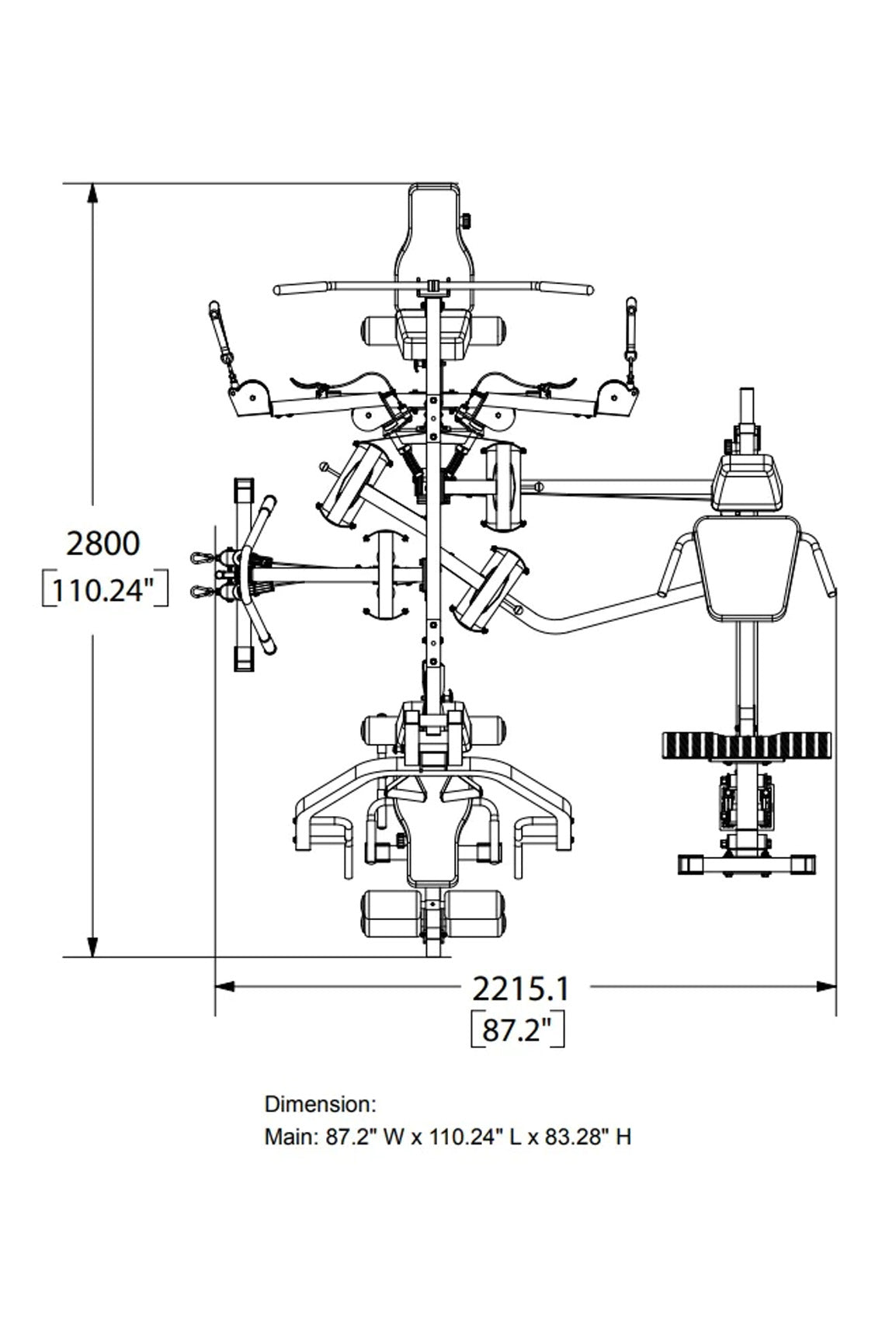

  • Weight Plates: 1-1/4” thick precision milled with EZ Glide nylon bushings. Measurements: 221cm (87”) W x 279cm (110”) L x 211cm (83”) H

5 Years Frame Warranty

2 Years Part Warranty

90 Day Upholstery

Accessories: Includes lat bar, curl bar, 2 single handles, and 2 exercise charts.
