Spirit Commercial Medical MU100 Rehabilitation Upright Bike
or 4 payments of $1,124.75 with or
The MU100 addresses lower-body conditioning with advanced options for optimal knee positioning. Users may input desired knee flexion angles and the software will calculate the pedal and the seat’s fore/aft position. Variables such as body symmetry and limb length can be taken into account for practitioners to finely tailor to every patient’s needs. The MU100 is equipped with the default MA900 Rehabilitation Adjustable Crank. The MU100 is also compatible with an additional passive arm, so that patients with insufficient strength can utilize the uninvolved limb to pedal while passively ranging the involved side within prescribed ROM.
Patients with Patella femoral conditions, total knee replacements, ACL, MCL, and PCL repairs, other ligamentous repairs, arthritic conditions, tendonitis, and many more conditions will benefit from the Spirit MU100 Rehab Upright Bike. This bike allows independently, single side or bi-lateral adjustments from a limited range-of-motion as small as 15 degrees through full range-of-motion. It has forward and reverse pedalling for instantaneous retro-cycling, constant resistance, constant power, isokinetic resistance, dynamic braking to minimize impulse loading and numbered adjustment indexing on seat & pedal crank. Intuitive interface for ease of operation. Unique knee angle data input allows entry of desired ROMs to determine seat and pedal crank settings minimizing the guess work. The set-up mode allows quick entry of patient data, resistance resolution, settings, and how the information is displayed.
Exercise in Both Directions
Closed kinetic chain
Patients with Patella femoral conditions, total knee replacements, ACL, MCL, and PCL repairs, other ligamentous repairs, arthritic conditions, tendonitis, and many more conditions will benefit
Console:LED Console with Symmetry Monitoring program to measure and display power around the pedal stroke
Programs:Quick Start, Manual, Preset, Hill, Plateau, Interval, and Custom
Resistance Mode:Bi-Directional Resistance – Forward and reverse pedaling for instantaneous retro-cycling, also includes Constant resistance, constant power and isokinetic resistance. Electro-magnetic resistance – allows for very small increments of work loads.
Drive Train:8 groove Poly-V Belt

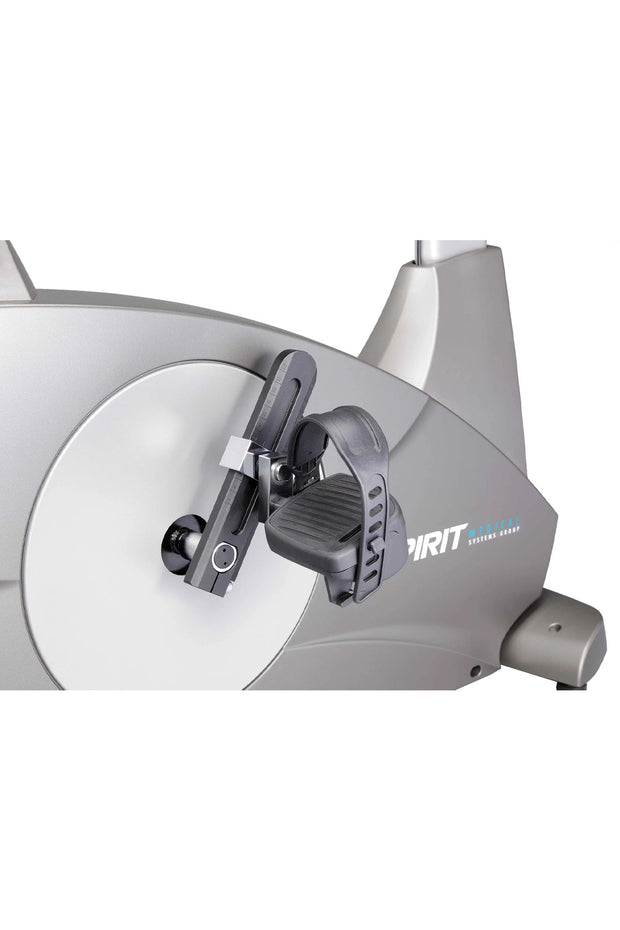

Foot Pedals:Adjustable pedal cranks, also includes a bi-lateral adjustment.
